Spanners

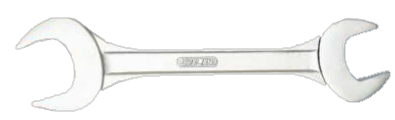

Double Open End Spanners

Chrome Vanadium Steel, Chrome Plated,Full Hardened & Tempered
Generally Conforming To Is 2028-2004


HSN-8204

Metric(mm) Size Inner Packing Std. Pkg. Master Carton
English(ww) Layman Prices
6 x 7 - 10 600
8 x 9 - 10 600
8 x 10 - 10 500
10 x 11 1/8x3/16 1 1/2x2 10 500
10 x 12 - 10 400
12 x 13 3/16x1/4 2x2 1/2 10 400
12 x 14 - 10 250
14 x 15 1/4x5/16 2 1/2x3 10 250
13 x 17 - 10 200
14 x 17 - 10 200
16 x 17 5/16x3/8 3x3 1/2 10 200
- 5/16x7/16 3x4 10 160
17 x 19 - - 10 160
18 x 19 3/8x7/16 3 1/2x4 10 160
19 x 22 - 10 120
20 x 22 7/16x1/2 4x4 1/2 10 120
21 x 23 - - 10 100
22 x 24 - - 10 100
- 7/16x9/16 4x5 10 100
24 x 26 1/2x9/16 4 1/2x5 5 75
24 x 27 - 5 75
25 x 28 9/16x5/8 5x5 1/2 5 60
27 x 30 9/16x11/16 5x6 5 50
27 x 32 - 5 50
30 x 32 5/8x3/4 5 1/2x7 5 50

HSN-8204

Heavy Duty Sizes-DIN 895
30 x 36 - - 5 30
32 x 36 3/4 x 7/8 - 5 30
34 x 36 - - 5 30
34 x 38 - - 5 30
36 x 38 - 5 24
36 x 41 7/8 x 1 - 2 24
41 x 46 1 x 1.1/8 - 2 20
- 7/8 x 1.1/8 - 2 20
46 x 50 1.1/8 x 1.1/4 - 2 16
50 x 55 - 2 12
- 1.1/8 x 1.1/4 - 2 12
55 x 60 - - 2 10
70 x 75 - - 2 4
SETS
Set No. Contents of Sets(mm) Prices Std. Pkg. Master Carton
12/4 M 10 x 11, 12 x 13, 14 x 15, 16 x 17 60
12/60 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19 48
12/6 M 6 x 7, 8 x 9, 10 x 11, 14 x 15, 16 x 17, 18 x 19 60
12/7 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22 48
12/70 M 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22 48
12/8 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22 36
12/10 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27 15
12/1010 M 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 30 x 32 15
12/100 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 24 x 27, 30 x 32 15
12/12 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 26, 25 x 28, 27 x 32 12
12/121 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32 12
12/6 W 1/8 x 3/16, 3/16 x 1/4, 1/4 x 5/16, 5/16 x 3/8, 3/8 x 7/16, 7/16 x 1/2 36
12/9 W 1/8 x 3/16, 3/16 x 1/4, 1/4 x 5/16, 5/16 x 3/8, 3/8 x 7/16, 1/2 x 9/16, 7/16 x 1/2, 9/16 x 5/8, 5/8 x 3/4 12

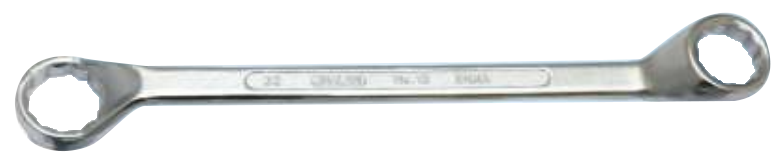

Bihexagon Ring Spanners Shallow Offset

Chrome Vanadium Steel, Chrome Plated,Polished (Rings), Full Hardened & Tempered
Generally Conforming To Is 2029-1998


HSN-8204

Size
Matric(mm) English(ww) Layman Prices Inner Packing Std.Pkg. Master Carton
6 x 7 - - 10 300
8 x 9 - 10 250
10 x 11 - 10 250
12 x 13 3/16 x 1/4 2 x 2 1/2 10 200
14 x 15 1/4 x 5/16 2 1/2 x 3 10 150
16 x 17 5/16 x 3/8 2x2 1/2 10 120
18 x 19 - - 10 100
- 5/16 x 7/16 3 x 4 10 100
19 x 22 - 10 80
20 x 22 3/8 x 7/16 3 1/2 x 4 10 80
21 x 23 - - 10 60
22 x 24 - - 10 60
- 7/16 x 9/16 4 x 5 5 50
24 x 26 5 50
24 x 27 - - 5 50
25 x 28 - - 5 40
27 x 32 9/16 x 11/16 5 x 6 5 30
30 x 32 - - 5 30

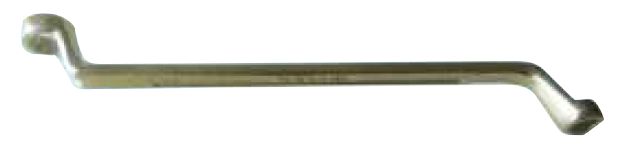

Deep Offset Bihexagon Ring Spanners No.2
Size
Matric(mm) Prices Inner Packing Std.Pkg. Master Carton
6 x 7 - 10 250
8 x 9 10 200
8 x 10 10 250
10 x 11 10 200
10 x 12 10 200
12 x 13 10 150
12 x 14 10 150
13 x 17 10 120
14 x 15 10 120
14 x 17 10 120
16 x 17 10 60
17 x 19 10 100
18 x 19 10 80
20 x 22 10 60
24 x 27 5 50
25 x 28 5 40
30 x 32 5 30

SETS
Set No. Contents of Sets(mm) Prices Std. Pkg. Master Carton
13/4 M 10 x 11, 12 x 13, 14 x 15, 16 x 17 48
13/6 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 36
13/66 M 6 x 7, 8 x 9, 10 x 11, 14 x 15, 16 x 17, 18 x 19 36
13/60 M 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19 36
13/7 M 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22 24
13/8 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22 24
13/10 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 24 x 27, 30 x 32 8
13/1010 M 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 30 x 32 8
13/12 M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32 8
Deep Offset Behexagon Ring Spanners Heavy Duty Size-No.2
Size
Matric(mm) English(ww) American(Sae) Prices Inner Packing Std.Pkg. Master Carton
32 x 36 3/4 x 7/8 - 2 20
34 x 36 - - 2 20
34 x 38 - - 2 20
36 x 38 - - 2 16
36 x 41 7/8 x 1 - 2 16
41 x 46 1 x 1.1/8 - 2 12
- 7/8 x 1.1/8 spl size - 2 12
46 x 50 1.1/8 x 1.1/4 - 2 8
50 x 55 - - 2 5
- 1.1/8 x 1.3/8 - 2 5
55 x 60 - - 2 5
65 x 70 - - 2 3
70 x 75 - - 2 3
75 x 80 - - 2 3

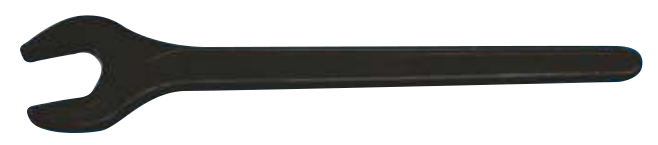

Single Ended Open Jaw Spanners

Selected Steel, Fully Hardened & Tempered
Generally Conforming To Is 2028-2004


HSN-8204

Size
Matric(mm) English(ww) inches Prices Std.Pkg. Master Carton
18 - - -
19 - - -
24 - - -
27 - - -
30 - - 50
32 - - 50
34 - - 30
36 13/16 - 30
38 - - 30
41 1 - 24
46 1.1/8 - 20
48 - - 20
50 1.1/4 - 16
55 1.3/8 2" 15
60 1.1/2 - 12
65 1.5/8 - 10
70 1.3/4 - 7
75 1.7/8 - 7
80 2 - 5
85 - - 5
90 2.1/2 BSF - 5
95 - - 4
100 2.3/4 BSF - 2
105 3 BSF - 2

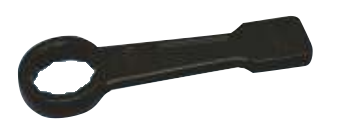

Sledge Type Single Ended Bihexagon Ring Spanners

Available in Burnished Finish, Chrome Vanadium Steel,
Generally Conforming To Is 4509-1992


HSN-8204

Size (mm) English (ww) Price Std.Pkg. Master Carton
24 - 80
27 - 60
30 - 30
32 1/2 30
34 5/8 30
36 11/16 30
38 3/4 20
41 - 20
46 13/16 18
50 7/8 16
55 15/16.1 12
60 1.1/8 10
65 1.1/4 8
70 1.3/8 6
75 1.1/2 4
80 1.5/8 4
85 1.3/4 4
90 1.7/8 2
95 2 2
100 2.1/4 2
105 2
110 1
115 1
120 1
125 1
130 1
135 1
140 1
145 1

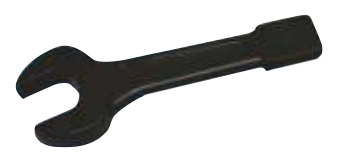

Sledge Type Single Ended Open Jaw Spanners

Available in Burnished Finish, Chrome Vanadium Steel,
Generally Conforming To Is 4508-1992


HSN-8204

Size (mm) English (ww) Price Std.Pkg. Master Carton
24 - 60
27 - 50
30 - 40
32 1/2 40
34 5/8 40
36 11/16 30
38 3/4 20
41 - 20
46 13/16 16
50 7/8 12
55 15/16.1 10
60 1.1/8 8
65 1.1/4 6
70 1.3/8 5
75 1.1/2 4
80 1.5/8 3
85 1.3/4 3
90 1.7/8 2
95 2 1
100 2.1/4 1
105 1
110 1
115 1
120 1
125 1
130 1
135 1
140 1
145 1

Tubular Box Spanners

Made from Selected Steel Tubing, Zinc / Chrome Plated
Generally Conforming To Is 2030-1989


HSN-8204

Metric Sizes (mm) Price Inner Packing Std. Pkg.
6 x 7 10 360
8 x 9 10 360
9 x 10 10 240
10 x 11 10 240
12 x 13 10 160
14 x 15 10 160
14 x 17 10 150
16 x 17 10 150
17 x 19 10 100
18 x 19 10 100
19 x 22 10 80
20 x 22 10 80
21 x 23 10 80
22 x 24 10 60
24 x 26 5 45
24 x 27 5 50
25 x 28 5 50
27 x 32 5 50
30 x 32 5 50

Tubular Box Spanner Sets

Selected Steel Tubing, Chrome Plated


HSN-8204

Set No. Contents of sets Prices Std.Pkg.
26TA/6M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, Tommy bar 10mm Dia x 190mm Along with step of 8mm & 5mm - 24
26TA/8M 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22 mm with Tommy bar 10mm Dia x 190mm Along with steps of 8mm & 5mm - 20
26TA/12M 6 x 7 to 30 x 32 with Tommy bar of 10 x 19 - 10

Tommy Bars for Box Spanners

Zinc Plated


HSN-8204

Size (mm) Dia x Length Subtable for Sizes Price
MM WW
5 x 125 6 x 7 to 10 x 11 1/8 x 3/16
8 x 160 12 x 13 to 14 x 17 3/16 x 1/4, 1/4 x 5/16
10 x 200 16 x 17 to 20 x 22 5/16 x 3/8, 3/8 x 7/16
12 x 250 21 x 23 to 24 x 27 7/16 x 1/2, 1/2 x 9/16
14 x 300 25 x 28 to 30 x 32 9/16 x 5/8, 11/16 x 13/16

Cone Step Tommy Bar

For Box Spanners, Chrome Plated


HSN-8204

Size (mm) Prices
10 mm dia x 190 mm long with steps of 8 mm and 5 mm
14 mm dia x 255 mm long with steps of 12 mm

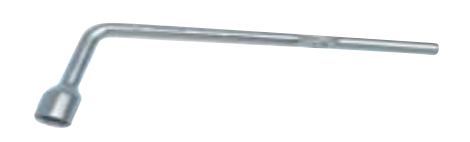

Wheel Spanners Hexagon Head

Selected Steel, Chrome Plated
Generally Conforming To Is 11874-1987


HSN-8204

No. Size Length (mm) Prices Std.Pkg.
25 (Indica) 18 mm 250 25
25 M (Marut) with Hole 19-3/4 SAE 275 25
25 B Bajaj 19-3/4 SAE 290 25
25 Mahindra 20.9 mm 310 25
25 (Inova / Toyota) with Hole 21 mm 275 25

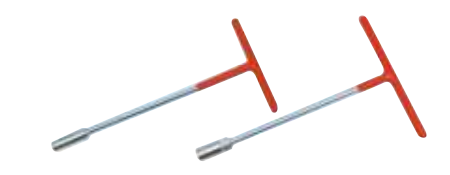

T-Type Socket Spanners

Chrome Plated with Sleeves


HSN-8204

Item No. Length (mm) Price Master Carton
T 8 8 x 250 50
T 9 9 x 250 50
T 10 10 x 250 50
T 11 11 x 250 50
T 12 12 x 250 50
T 13 13 x 250 50
T 14 14 x 250 50

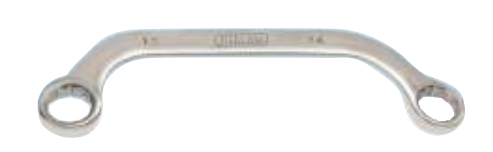

C-Type Half Moon Ring Spanners


HSN-8204

Size (mm) Price Master Carton
8 x 10 500
10 x 11 300
11 x 13 300
12 x 13 300
14 x 15 200
14 x 17 150
16 x 17 150
17 x 19 150
18 x 19 150
19 x 22 100
20 x 22 100
21 x 23 100

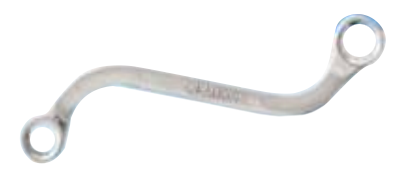

S-Type Ring Spanners


HSN-8204

Size (mm) Price Master Carton
10 x 11 400
12 x 13 300
14 x 15 200
16 x 17 150
17 x 19 100
18 x 19 30
